A rugged PC in a waterproof stainless steel case sealed to IP65 for food manufacturing and processing companies.

Made from stainless steel and sealed to IP65. the PC Guard PCT-65 Rugged PC is assured to continue to operate properly in hostile environments. ensuring that your production continues to function at full capacity 24 hours a day.
With PC-Guards rugged PC's, you can be confident that they are purpose built for life in hostile wet environments.

PCT-65 Rugged PCs, a robust design configured to work in hostile environments.

IPC Waterproof Industrial PC

The enclosure includes

A Integral barcode laser scanner, to allow for scanning of product codes etc. A Printer enclosure for bar-coded job tickets, An temperature controlled heater that if the PCT-65 workstation temperature drops below 15 deg C the heater switches on to keep the electronics at the correct operating temperature. And also Waterproof mouse sealed to IP65 to allow for interaction with the processor and monitor











Industrial PCIP65 Pentium PC with 12.1 TFT screen and stainless steel enclosure.

TFT active matrix 12.1 inch colour screen
Lexon window
Pentium class processor,
64 MB memory
Windows NT
Heater auto switch on at 15degC
Hard drive
External interface by IP65 connectors with screw on protective caps for power, keyboard, RS232 for com port 1 and Ethernet (CAT5/RJ45 to IP68 connector).

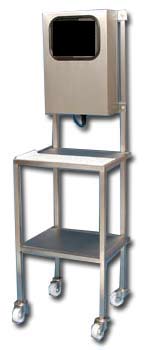

Waterproof computerGalleon PCT-65P Workstation Case Stainless Steel case, wall mounted, sealed to IP65
Processor Pentium class
Screen 12.1" TFT Colour LCD
Memory 64 MB
Hard Disk Drive
Pointing device Integrated into the front case
Power supply unit 240V via IP68 connectorBus 1 ISA and 1 PCI Serial ports Com 1 connected to IP68 Com 2 internal
Printer port Internal Keyboard Integral membrane QWERTY Operating system Windows NT
Network Ethernet 10/100Mbps
Heater auto switch on at 15degC


Options required (Ordered with PCT-65P)

Product code

IP68 plug connector to terminate CAT5 cable

ZPCT-9WILP

External IP68 connector for com port 2 (RS232 serial)

PCT-COM2

External IP68 connector for Mouse

PCT-MC

Stainless steel IP65 hand held Laser scanner

LS67-01


Barcode Laser scanner sealed to IP 65 / NEMA 4
Stainless steel IP65 hand held Laser scanner

Bar code scanner IP65 and NEMA 4 Manufactured in Stainless Steel and sealed to IP65 ensures the PC-Guard LS65 Bar-Code
Scanner continues to operate properly in hostile environments. Protecting your investment and ensuring that your production continues to function at full capacity 24 hours a day.

Interface Options
Keyboard wedge
Serial RS232
Bar-Code wand emulation
Reads all bar-code formats Wall or table mount units available.


waterproof bar code laser scannerCustom Laser scanners available

Custom laser scanners can be produced in various sizes and shapes in order to meet your criteria or demand. These scanners work exactly like the standard ones allowing you to scan in orders, product codes or whatever you require a scanner for

Call now for more information 0121 608 7229
